Mercury Marine Parts Catalog

Find the Parts You're Looking For

You are here: Marine Parts » Mercury Marine Parts Catalog » Exhaust Manifold

Exhaust Manifold

  Ref ID Description Price
1
MANIFOLD ASSEMBLY, Exhaust (#8M0099070)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 8M0045258, 866389T01
Qty Required For Repair: 2
Supersedes: 8M0045258, 866389T01
$1,012.85
$1,048.50
2
PLUG, Expansion (#19-864689)
Qty Required For Repair: 8
Minimum Order Qty: 6
Qty Required For Repair: 8
Minimum Order Qty: 6
$2.16
$2.70
3
GASKET, Cylinder Head to Exhaust Manifold (#27-8M0065690)
Qty Required For Repair: 1
Minimum Order Qty: 1
Supersedes: 27-8M0054751, 27-8M2018049, 27-8M2000886
Supersedes: 27-8M0054751, 27-8M2018049, 27-8M2000886
$59.44
$61.92
4
COLLECTOR, Exhaust (#866391T02)
Comment: (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(See Note)
Qty Required For Repair: 2
NLA
5
GASKET, Collector, Exhaust (#27-866390)
Qty Required For Repair: 1
Minimum Order Qty: 1
$117.04
$128.33
6
PLUG, (.250-18) (#22-8M0180564)
Qty Required For Repair: 1
$5.84
$7.30
7
SENSOR, Oxygen (#8M2003959)
Qty Required For Repair: 4
Minimum Order Qty: 1
Qty Required For Repair: 4
$110.49
$128.75
8
COVER, Oxygen Sensor (#8M2004289)
Qty Required For Repair: 4
Minimum Order Qty: 1
Qty Required For Repair: 4
NLA
9
SCREW, (M6 x 10) Stainless Steel (#10-4010610)
Qty Required For Repair: AR
Minimum Order Qty: 1
$1.84
$2.30
10
SCREW, (M8 x 35) Stainless Steel (#10-40011151)
Qty Required For Repair: 8
Minimum Order Qty: 1
Qty Required For Repair: 8
$6.50
$6.60
11
SCREW, (M8 x 70) Stainless Steel (#10-40011158)
Qty Required For Repair: 8
Minimum Order Qty: 1
Qty Required For Repair: 8
$6.88
$8.60
12
RESONATOR (#860222A1)
Qty Required For Repair: 1
Minimum Order Qty: 1
$67.36
$70.17
13
SENSOR ASSEMBLY (#8M0148668)
Qty Required For Repair: 2
Qty Required For Repair: 2
$43.60
$45.42
14
O-RING, (1.78 mm x .08 mm) (#25-896699)
Qty Required For Repair: 1
Minimum Order Qty: 1
Supersedes: 25-888814
Supersedes: 25-888814
$9.60
$12.00
15
CLIP (#54-65653)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
$3.84
$4.80
16
CLAMP, Worm Gear (#54-815504206)
Qty Required For Repair: 4
Minimum Order Qty: 1
Supersedes: 54-35830, 54-846162, 54-8M2001497
Qty Required For Repair: 4
Supersedes: 54-35830, 54-846162, 54-8M2001497
$5.20
$6.50
17
STUD, (M8 x 37.1) (#16-424632)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
$12.72
$15.90
18
SCREW, (M8 x 16) (#10-4010716)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
$3.44
$4.30
19
SCREW, (M8 x 35) (#10-4009535)
Qty Required For Repair: 20
Minimum Order Qty: 10
Qty Required For Repair: 20
Minimum Order Qty: 10
$2.96
$3.70
20
FITTING, Straight (.125-27) (#22-16604)
Comment: (MIE) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(MIE) (See Note)
Qty Required For Repair: 2
$8.88
$11.10
21
CATALYST (#879288T47)
Qty Required For Repair: 6
Minimum Order Qty: 1
Qty Required For Repair: 6
$1,707.49
$1,935.93
22
RING, Retention, Catalyst (#866775)
Qty Required For Repair: 6
Minimum Order Qty: 1
Qty Required For Repair: 6
$27.44
$28.58
23
ELBOW, Exhaust, No Rise (#879288T79)
Comment: (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(See Note)
Qty Required For Repair: 2
$1,556.42
$1,737.07
23
ELBOW, Exhaust, No Rise (#879288T80)
Comment: (MIE V-Drive only) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(MIE V-Drive only) (See Note)
Qty Required For Repair: 2
$729.74
$755.43
23
RISER KIT, Exhaust - 2 Inch Rise (#8M0062051)
Comment: (Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
Supersedes: 879288T81
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Supersedes: 879288T81
$3,235.14
$3,851.36
23
RISER KIT, Exhaust - 4 Inch Rise (#8M0062052)
Comment: (Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
Supersedes: 879288T82
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Supersedes: 879288T82
$4,165.34
$5,042.79
23
RISER KIT, Exhaust - 6 Inch Rise (#879288T83)
Comment: (Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
$2,200.69
$2,515.07
23
RISER KIT, Exhaust - 8 Inch Rise (#879288T84)
Comment: (Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
(Contains 2 Elbows) (Includes Hose Ref #38) (See Note)
$2,255.50
$2,577.71
24
GASKET (Elbow 0 rise includes 1 gasket each) (#27-8M2003931)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
$82.00
$89.92
25
VALVE, Poppet Assembly (#879288T59)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 8M0045697
Qty Required For Repair: 2
Supersedes: 8M0045697
$557.24
$576.86
26
GASKET, Poppet Cover (#27-8M2010475)
Qty Required For Repair: 1
Minimum Order Qty: 1
$2.16
$2.70
27
POPPET (#8M2010186)
Qty Required For Repair: 1
Minimum Order Qty: 1
$24.48
$25.50
28
BALL (#30-863129)
Qty Required For Repair: 1
Minimum Order Qty: 1
$2.16
$2.70
29
O-RING, (1.112 x .103) (#25-864701)
Qty Required For Repair: 1
Minimum Order Qty: 2
Supersedes: 25-47632
Minimum Order Qty: 2
Supersedes: 25-47632
$2.80
$3.50
30
FITTING (#862994T)
Qty Required For Repair: 1
Minimum Order Qty: 1
Supersedes: 862994, 8M2022151
Supersedes: 862994, 8M2022151
$7.28
$9.10
31
SPRING, (Stainless Steel) (#24-42996)
Qty Required For Repair: 1
Minimum Order Qty: 2
Minimum Order Qty: 2
$1.36
$1.70
32
CAP, Poppet Valve (#8M8020539)
Qty Required For Repair: 1
Minimum Order Qty: 1
$79.34
$87.00
33
SCREW, (.250-20 x .875) Stainless Steel (#10-28668)
Qty Required For Repair: 3
Minimum Order Qty: 5
Qty Required For Repair: 3
Minimum Order Qty: 5
$1.28
$1.60
34
SCREW, (M8) Hex Flange (#10-8M0140384)
Qty Required For Repair: 12
Qty Required For Repair: 12
$3.68
$4.60
35
FITTING, Straight (.750-14) (#22-866725)
Comment: (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 22-45084, 22-863804, 22-807155
(See Note)
Qty Required For Repair: 2
Supersedes: 22-45084, 22-863804, 22-807155
$14.08
$17.60
36
HOSE, (45 Inches Bulk), Poppet to Elbow (#32-8M0062669)
Comment: (MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
(MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
$26.24
$27.33
36
HOSE, (45 Inches Bulk), Poppet to Elbow (#32-8M0062669)
Comment: (MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
(MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
$26.24
$27.33
36
HOSE, (45 Inches Bulk), Poppet to Elbow (#32-8M0062669)
Comment: (MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
(MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
$26.24
$27.33
36
HOSE, (45 Inches Bulk), Poppet to Elbow (#32-8M0062669)
Comment: (MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
(MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note)
Qty Required For Repair: 2
Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12
$26.24
$27.33
37
HOSE, To Heat Exchanger (#32-8M2004598)
Comment: Starboard (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
Starboard (See Note)
$32.00
$33.33
37
HOSE, To Heat Exchanger (#32-8M2004608)
Comment: Port (See Note)
Qty Required For Repair: 1
Minimum Order Qty: 1
Port (See Note)
$27.04
$28.17
38
FITTING, Straight (3/4 x 0.5) (#22-8M2016321)
Comment: (MIE) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(MIE) (See Note)
Qty Required For Repair: 2
$48.64
$50.67
39
FITTING, Straight (#22-8M2004390)
Comment: (MCM) (See Note)
Qty Required For Repair: 2
Minimum Order Qty: 1
(MCM) (See Note)
Qty Required For Repair: 2
$12.00
$15.00
NS
CLAMP, Closed (#54-8M2016531)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
NLA
NS
SCREW, (M8 x 16) (#10-4010716)
Qty Required For Repair: 2
Minimum Order Qty: 1
Qty Required For Repair: 2
$3.44
$4.30

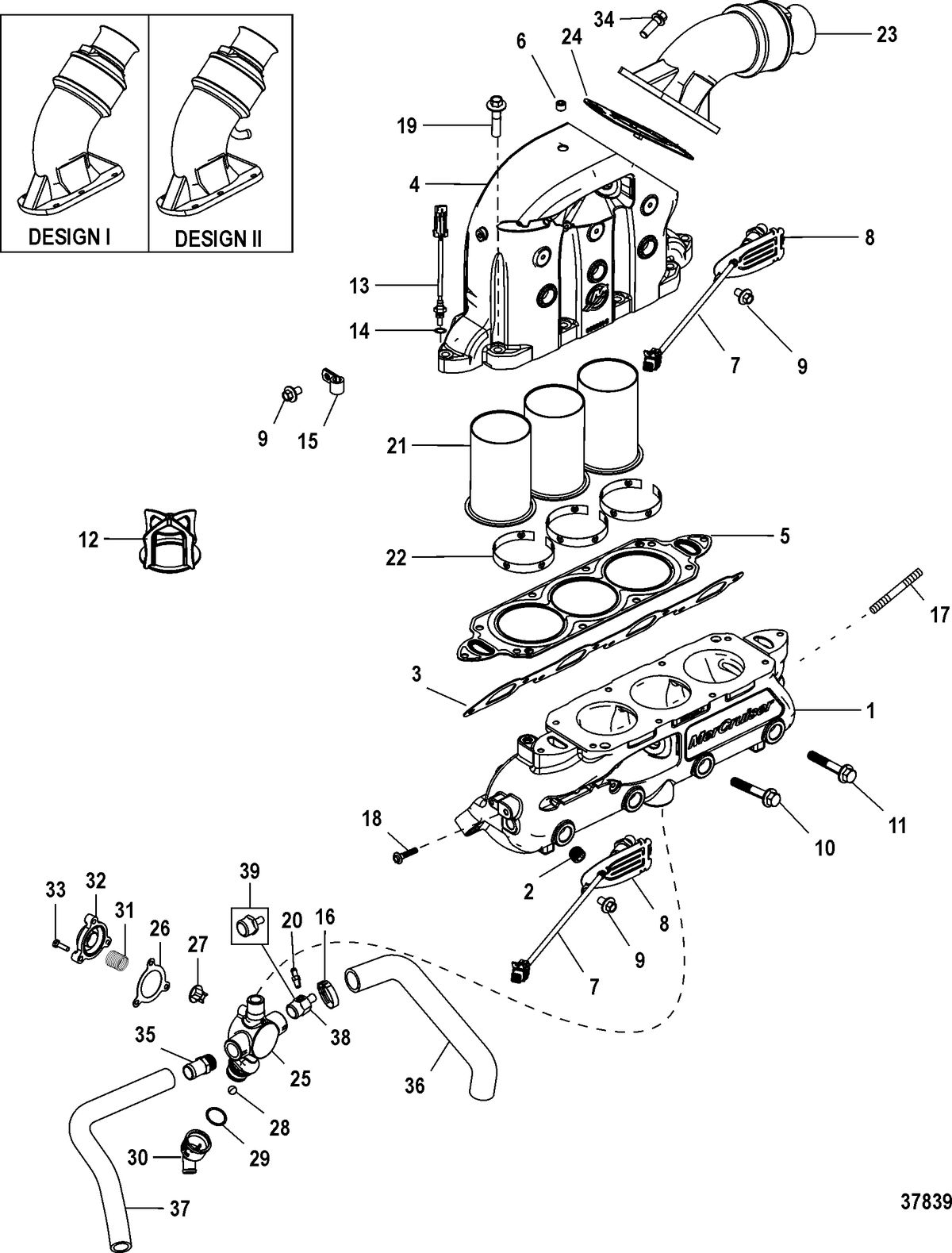

To zoom in, move your mouse over the diagram.
MERCRUISER 496 MAG STERNDRIVE EC Exhaust Manifold

Notes

1: If elbow/riser does not have a bib (Design I) contact Mercury Marine Technical Service for retrofit kit for Design II

This assembly is found in these models:

  • MERCRUISER > 496 MAG EC (Base Model)
  • MERCRUISER > 496 MAG EC (H.O. Model)

Contact Us

1-405-533-3812

  • 8002 West 6th Stillwater, OK 74074
  • Business Hours: Mon-Fri 9:00–5:30
  • [email protected]

About Us

  • Our Company
  • Our Blog
  • Policies & Terms
  • Sitemap

Follow Us Here

  • Facebook
  • Twitter
  • LinkedIn
  • Youtube
Performance Product Technologies, EnginesRebuild & Exchange, Stillwater, OK

The best source for Mercruiser OEM parts, marine engines, boat & engine parts, accessories, boating supplies, tools, & aquatic sporting goods.

Copyright © 2024 Performance Product Technologies
